Very clear UV resistant polycarbonate PC roof panel machine

Very Clear UV Resistant Polycarbonate PC Roofing Sheet machineThis machine realizes continuous production of PC hollow grid plate, which is applicable to roofing, construction decoration, advertisement collocation, and noise insulation of highway etc. This machine consist of main extruder, co-extruder, hydraulic filter, mel

Featured Products

Very Clear UV Resistant Polycarbonate PC Roofing Sheet machine

This machine realizes continuous production of PC hollow grid plate, which is applicable to roofing, construction decoration, advertisement collocation, and noise insulation of highway etc. This machine
consist of main extruder, co-extruder, hydraulic filter, melting pump, T-die head, vacuum calibrating table,and the other downstream parts, haul off, oven , cutter etc.


MAIN PARTS DESCRIPTION:
1. Extruder: The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.

2. Screen changer: Quick screen changer of hydraulic system ensures the short course of screen changing.

3. Mould: Mould adopts high-quality alloy steel and throtting device to guarantee even thickness of the plate.

4. Vacuum calibrating table: Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision.

5. Tractor: There are two tractors. The first one is of high power, high reduction ratio, multi-roller type, well low-speed operation, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.

6. Stress remover: The advanced large area conductive heating mode can effectively remove the stress of plate and further improve planeness of the plate.

7. Cutting machine: Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting.

MAIN TECHNICAL DATA
PC Hollow Sheet Extrusion Line Technical Data
Extruder modelSJ-120, SJ-45
Sheet width2100mm
Sheet thickness4-12mm
Max capacity450kg/h
Main motor power185kw

POLYCARBONATE HOLLOW SHEET APPLICATIONS:
1) Construction of sunroof in buildings, halls, shopping center, stadium, public places of entertainment and public facility
2) Ring shield of bus stations, garages, pergolas, corridors.
3) Transparent shields for security forces in nursery schools airports, factories,
4) Skylight of modern agriculture and aquacultures, indoor pools
5) Sign board for ads light box and exhibition service
6) Street name plate advertisement lamp house advertisement and exhibition disposal Ceilings partition walls and exhibition stands partition in office and residence

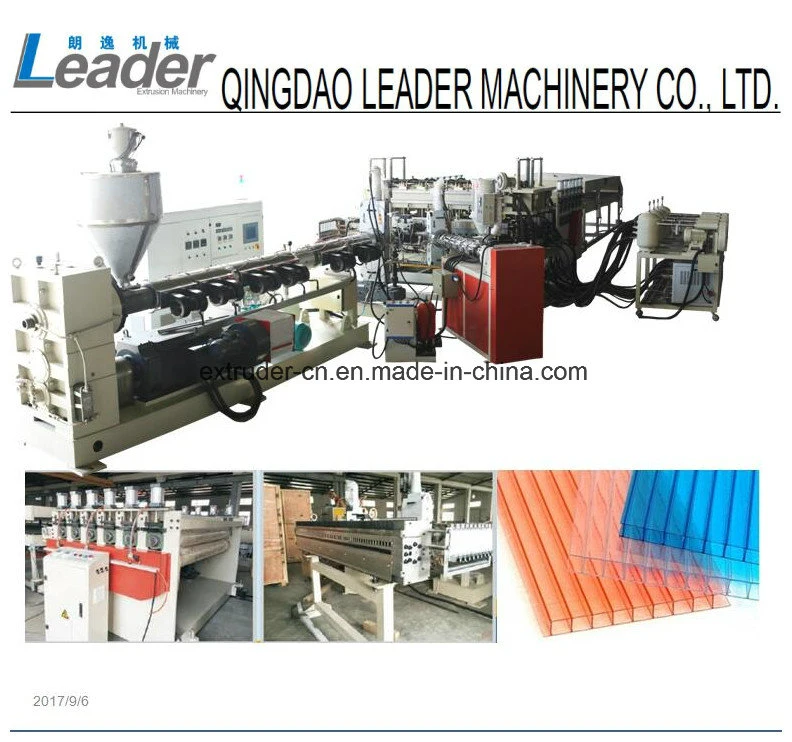

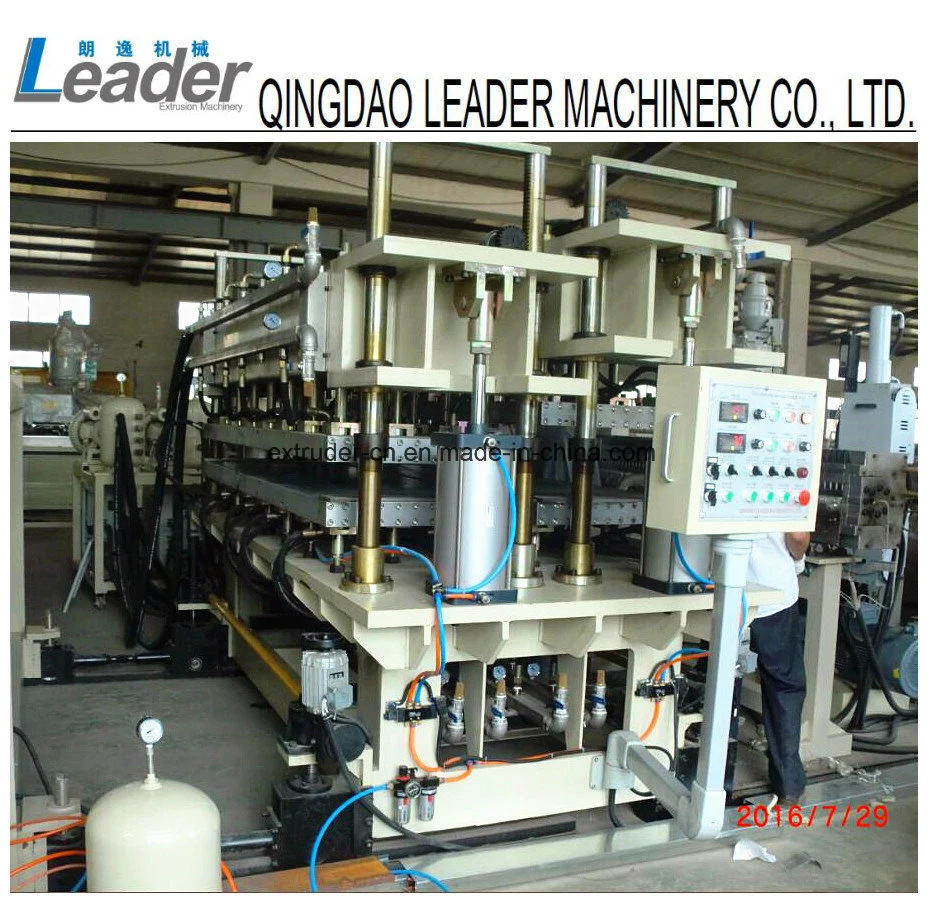

MACHINE PICTURES:
